Solar Stringer LayUp Machine|Radiant Pv Solar

Description: Automatic layup machine for solar cell stringer
Product Model: ACL-480-II
Stringer Type: 10 and 12x6stringer whole cell
Glass Size:L1630-2600mm*W950-1450mm
Solar Cell Type:156-210mm 4-15BB

EMAIL

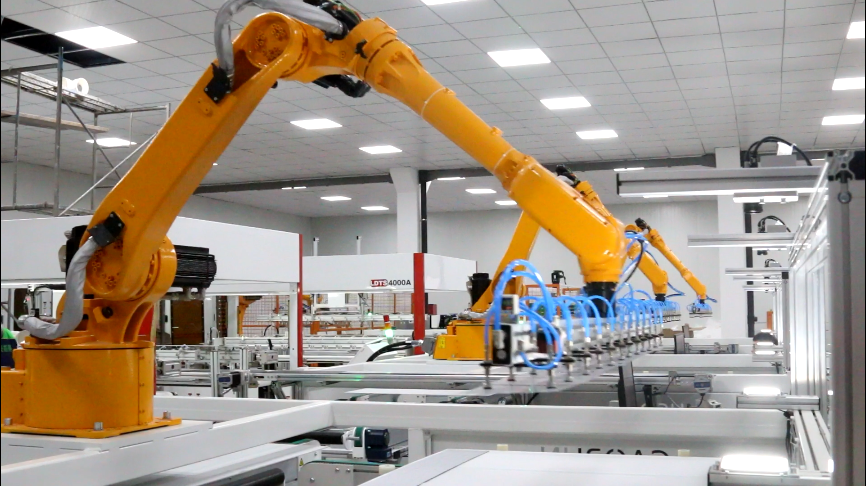

Auto Solar Stringer LayUp Machine By Robot|Radiant Pv Solar

         Range of Compatibility

Full cell,half cutting cell,156-210mm,5-12BB modules

              Jig Changeover

1-2hours

          Full Cell Size Module

10cellsx6string,12cellsx6string

          Half Cell Size Module

10cellsx6string,12cellsx12string

              Glass Size

 L1630-2600mm*W950-1450mm

           Module Height

 Loading 950±30mm,Unloading 980±30mm

           Cell Stringer Height

 1220±20mm

                  Cycle

 Full size cell ≤60s/module(6 string),Half size cell≤60s/module(12string)

        Repeat Accuracy of String

 ≤0.8mm

                String Distance

 ±0.8mm

                    Uptime

99.8%

                    Yeild

 95%


Features:

1.Wide range of compatibility: For full cell, half cell, 156-210mm/5BB-12BB modules;

2.High precision: use 6-axis robot and CCD to achieve high-precision layup;

3.Convenient version switching: the modules are centered and aligned with the production recipe, which can quickly realize the version switching;

4.Convenient maintenance: simple structure and low failure rate;

Company information


As a leading manufacturer of turnkey line solutions for PV intelligent equipment, Radiant is specializing in the R&D, design,production,sales and related services of high-tech automation complete sets of equipment.



High performance and best stability for all equipment,Free factory lay out,Machine installation,commissioning&training


Radiant always adheres to its advanced production technology, improved technological process, excellent product quality, comprehensive after-sales service to continuously provide customers with innovative, efficient and specialized solutions, and has won good reputation and wide recognition in the industry and global market.
